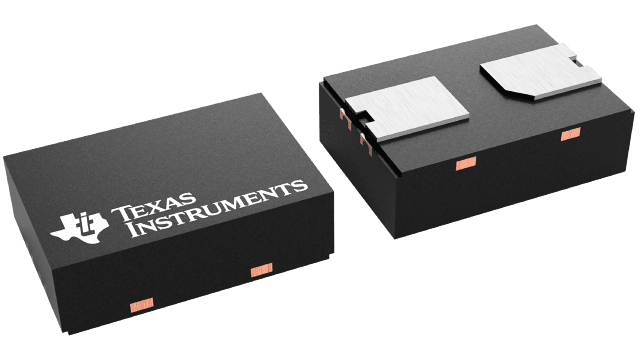

LMT01QDQXRQ1 Texas Instruments - Yeehing Electronics

Automotive Grade, 0.5°C Accurate 2-pin Temperature Sensor with a Pulse Train Interface

Pricing (USD)

Quantity	Unit Price
1 — 99	2.148
100 — 249	1.774
250 — 999	1.275
1,000 +	0.67

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMT01QDQXRQ1 Datasheet

More Information

The LMT01-Q1 device is a high-accuracy, 2-pin temperature sensor with an easy-to-use pulse count current loop interface, which makes it suitable for onboard and offboard applications in automotive, industrial, and consumer markets. The LMT01-Q1 digital pulse count output and high accuracy over a wide temperature range allow pairing with any MCU without concern for integrated ADC quality or availability, while minimizing software overhead. TI’s LMT01-Q1 device achieves a maximum ±0.5°C accuracy with very fine resolution (0.0625°C) over a temperature range of –20°C to 90°C without system calibration or hardware and software compensation.
