Texas Instruments
LMT01QLPGQ1
LMT01QLPGQ1
Couldn't load pickup availability

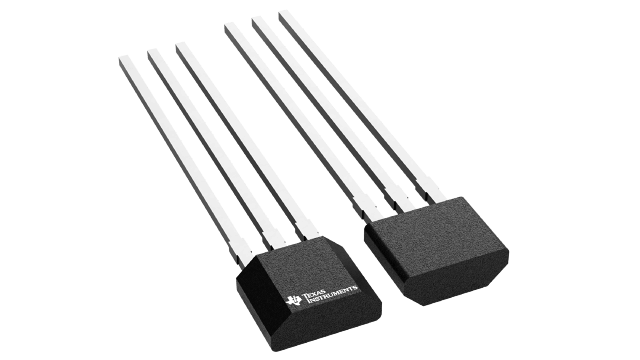

LMT01QLPGQ1 Texas Instruments - Yeehing Electronics
Automotive Grade, 0.5°C Accurate 2-pin Temperature Sensor with a Pulse Train Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.26 |
| 100 — 249 | 1.981 |
| 250 — 999 | 1.389 |
| 1,000 + | 0.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Digital |
| Configuration | Local |
| Accuracy | +/- 0.5 C |
| Supply Voltage - Min | 2 V |
| Supply Voltage - Max | 5.5 V |
| Interface Type | 1-Wire |
| Resolution | 13 bit |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | No Shutdown |
| Mounting Style | Through Hole |
| Package / Case | TO-92-2 |
| Product | Temperature Sensors |
| Qualification | AEC-Q100 |
| Packaging | Bulk |
| Output Current | 34 uA, 125 uA |
| Series | LMT01-Q1 |
| Brand | Texas Instruments |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 1000 |
| Subcategory | Sensors |
| Unit Weight | 0.004399 oz |
For more information, please refer to datasheet
Documents
| LMT01QLPGQ1 Datasheet |
More Information
The LMT01-Q1 device is a high-accuracy, 2-pin temperature sensor with an easy-to-use pulse count current loop interface, which makes it suitable for onboard and offboard applications in automotive, industrial, and consumer markets. The LMT01-Q1 digital pulse count output and high accuracy over a wide temperature range allow pairing with any MCU without concern for integrated ADC quality or availability, while minimizing software overhead. TI’s LMT01-Q1 device achieves a maximum ±0.5°C accuracy with very fine resolution (0.0625°C) over a temperature range of –20°C to 90°C without system calibration or hardware and software compensation.
