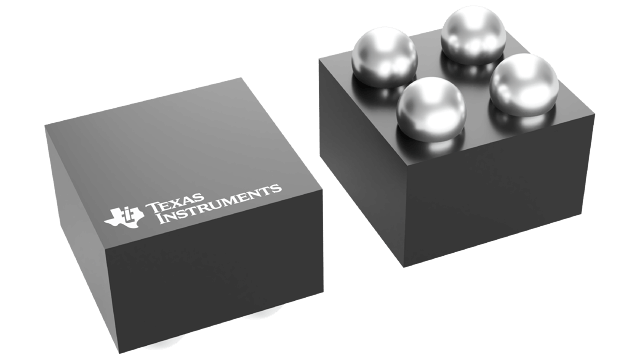

LMT70YFQR Texas Instruments - Yeehing Electronics

0.1C analog temperature sensor, -5.19 mV/C, high-precision matched pairs, output enable pin

Pricing (USD)

Quantity	Unit Price
1 — 99	None
100 — 249	None
250 — 999	None
1,000 +	None

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Board Mount Temperature Sensors
RoHS	Y
Output Type	Analog
Configuration	Local
Accuracy	+/- 0.36 C
Supply Voltage - Min	2 V
Supply Voltage - Max	5.5 V
Resolution	12 bit
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Shutdown	Shutdown
Mounting Style	SMD/SMT
Package / Case	WLCSP-4
Product	Analog Temperature Sensor
Packaging	Reel
Series	LMT70
Brand	Texas Instruments
Gain	- 5.194 mV / C
Operating Supply Current	9.2 uA
Product Type	Temperature Sensors
Factory Pack Quantity	3000
Subcategory	Sensors

For more information, please refer to datasheet

Documents

LMT70YFQR Datasheet

More Information

The LMT70 is an ultra-small, high-precision, low-power CMOS analog temperature sensor with an output enable pin. Applications for the LMT70 include virtually any type of temperature sensing where cost-effective, high precision and low-power are required, such as Internet of Things (IoT) sensor nodes, medical thermometers, high-precision instrumentation and battery powered devices. The LMT70 is also a great replacement for RTD and precision NTC/PTC thermistors.
