Texas Instruments

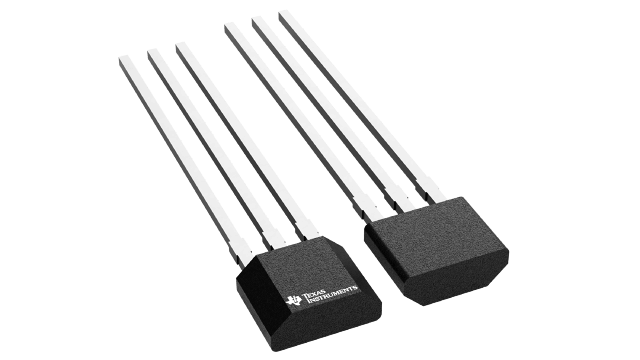

LMT86LPG
LMT86LPG
Couldn't load pickup availability
LMT86LPG Texas Instruments - Yeehing Electronics
2.2V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.721 |
| 100 — 249 | 0.555 |
| 250 — 999 | 0.409 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Analog |
| Configuration | Local |
| Accuracy | +/- 0.4 C |
| Supply Voltage - Min | 2.2 V |
| Supply Voltage - Max | 5.5 V |
| Resolution | - |
| Minimum Operating Temperature | - 50 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | No Shutdown |
| Mounting Style | Through Hole |
| Package / Case | TO-92-3 |
| Product | Temperature Sensors |
| Packaging | Bulk |
| Output Current | 7 mA |
| Series | LMT86 |
| Brand | Texas Instruments |
| Operating Supply Current | 5.4 uA |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 1000 |
| Subcategory | Sensors |
| Unit Weight | 0.001298 oz |
For more information, please refer to datasheet
Documents
| LMT86LPG Datasheet |
More Information
The LMT86 are precision CMOS temperature sensors with ±0.4°C typical accuracy (±2.7°C maximum) and a linear analog output voltage that is inversely proportional to temperature. The 2.2-V supply voltage operation, 5.4-µA quiescent current, and 0.7-ms power-on time enable effective power-cycling architectures to minimize power consumption for battery-powered applications such as drones and sensor nodes. The LMT86LPG through-hole TO-92S package fast thermal time constant supports off-board time-temperature sensitive applications such as smoke and heat detectors. The accuracy over the wide operating range and other features make the LMT86 an excellent alternative to thermistors.
