LMT87LPGM Texas Instruments - Yeehing Electronics

±2°C 2.7V to 5.5V analog output temperature sensor with -13.6 mV/°C gain

Pricing (USD)

Quantity	Unit Price
1 — 99	0.6
100 — 249	0.462
250 — 999	0.34
1,000 +	0.17

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMT87LPGM Datasheet

More Information

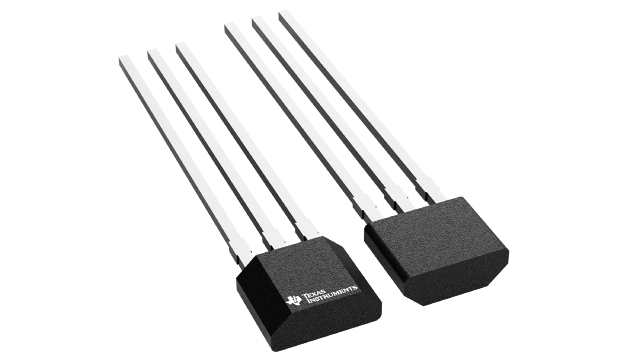

The LMT87 device is a precision CMOS temperature sensor with ±0.4°C typical accuracy (±2.7°C maximum) and a linear analog output voltage that is inversely proportional to temperature. The 2.7-V supply voltage operation, 5.4-µA quiescent current, and 0.7-ms power-on time enable effective power-cycling architectures to minimize power consumption for battery-powered applications such as drones and sensor nodes. The LMT87LPG through-hole TO-92S package fast thermal time constant supports off-board time-temperature sensitive applications such as smoke and heat detectors. The accuracy over the wide operating range and other features make the LMT87 an excellent alternative to thermistors.
