LMV1012TP-25/NOPB Texas Instruments - Yeehing Electronics

Analog input microphone preamplifier for high gain 2-wire microphones

Pricing (USD)

Quantity	Unit Price
1 — 99	1.203
100 — 249	0.925
250 — 999	0.681
1,000 +	0.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Microphone Preamplifiers
RoHS	Y
Series	LMV1012
Amplifier Type	Electret Microphone Preamplifier
Number of Channels	1 Channel
THD plus Noise	0.21 %
Supply Voltage - Max	5 V
Supply Voltage - Min	2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

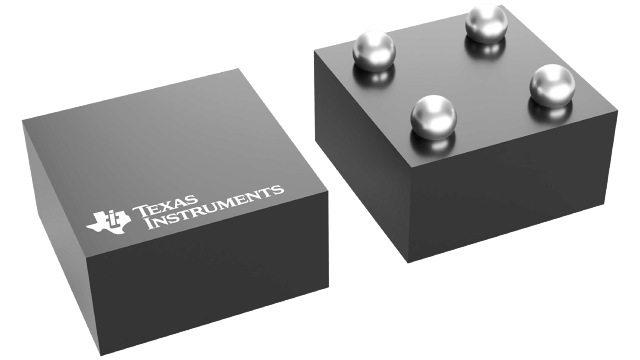

Package / Case	DSBGA-4
Packaging	Reel
Height	0.35 mm
Length	1.01 mm
Output Type	1-Channel Mono
Product	Microphone Preamplifiers
Supply Type	Single
Width	0.93 mm
Audio - Load Impedance	2.2 kOhms
Brand	Texas Instruments
Shutdown	No Shutdown
Class	Class-AB
en - Input Voltage Noise Density	56 nV/sqrt Hz
Input Signal Type	Single
Operating Supply Current	160 uA
Operating Supply Voltage	3 V
Output Signal Type	Single
Product Type	Microphone Preamplifiers
Factory Pack Quantity	250
Subcategory	Audio ICs

For more information, please refer to datasheet

Documents

LMV1012TP-25/NOPB Datasheet

More Information

The LMV1012 is an audio amplifier series for small form factor electret microphones. This 2-wire portfolio is designed to replace the JFET amplifier currently being used. The LMV1012 series is ideally suited for applications requiring high signal integrity in the presence of ambient or RF noise, such as in cellular communications. The LMV1012 audio amplifiers are specified to operate over a 2.2V to 5.0V supply voltage range with fixed gains of 7.8 dB, 15.6 dB, 20.9 dB, and 23.8 dB. The devices offer excellent THD, gain accuracy and temperature stability as compared to a JFET microphone.
