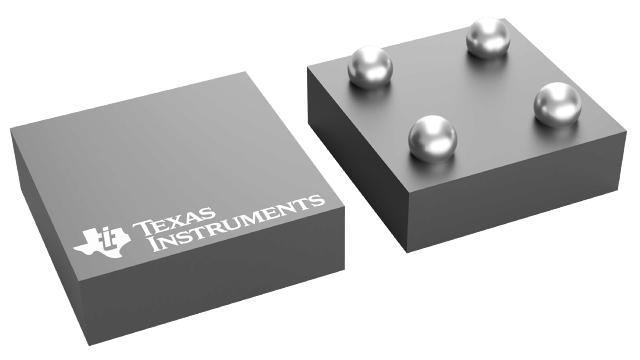

LMV1012UP-15/NOPB


YeeHing #: Y002-LMV1012UP-15/NOPB
Inventory: 6000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMV1012UP-15/NOPB Texas Instruments - Yeehing Electronics

Analog input microphone preamplifier for high gain 2-wire microphones

Pricing (USD)

Quantity Unit Price
1 — 99 0.869
100 — 249 0.669
250 — 999 0.492
1,000 + 0.25

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Microphone Preamplifiers
RoHS Y
Series LMV1012
Amplifier Type Electret Microphone Preamplifier
Number of Channels 1 Channel
THD plus Noise 0.13 %
Supply Voltage - Max 5 V
Supply Voltage - Min 2 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case DSBGA-4
Packaging Reel
Height 0.25 mm
Length 1.01 mm
Output Type 1-Channel Mono
Product Microphone Preamplifiers
Supply Type Single
Width 0.93 mm
Audio - Load Impedance 2.2 kOhms
Brand Texas Instruments
Shutdown No Shutdown
Class Class-AB
en - Input Voltage Noise Density 56 nV/sqrt Hz
Input Signal Type Single
Operating Supply Current 200 uA
Operating Supply Voltage 3 V
Output Signal Type Single
Product Type Microphone Preamplifiers
Factory Pack Quantity 250
Subcategory Audio ICs
Unit Weight 0.000028 oz

For more information, please refer to datasheet

Documents

LMV1012UP-15/NOPB Datasheet

More Information

The LMV1012 is an audio amplifier series for small form factor electret microphones. This 2-wire portfolio is designed to replace the JFET amplifier currently being used. The LMV1012 series is ideally suited for applications requiring high signal integrity in the presence of ambient or RF noise, such as in cellular communications. The LMV1012 audio amplifiers are specified to operate over a 2.2V to 5.0V supply voltage range with fixed gains of 7.8 dB, 15.6 dB, 20.9 dB, and 23.8 dB. The devices offer excellent THD, gain accuracy and temperature stability as compared to a JFET microphone.
