Description

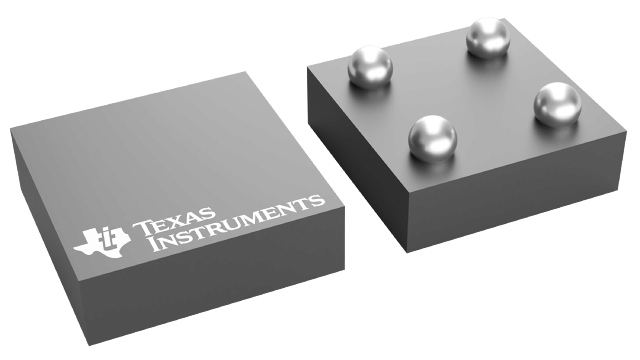

LMV1012UP-20/NOPB Texas Instruments - Yeehing Electronics
Analog input microphone preamplifier for high gain 2-wire microphones
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.869 |
100 — 249 | 0.669 |
250 — 999 | 0.492 |
1,000 + | 0.25 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Microphone Preamplifiers |
RoHS | Y |
Series | LMV1012 |
Amplifier Type | Electret Microphone Preamplifier |
Number of Channels | 1 Channel |
THD plus Noise | 0.18 % |
Supply Voltage - Max | 5 V |
Supply Voltage - Min | 2 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-4 |
Packaging | Reel |
Height | 0.25 mm |
Length | 1.01 mm |
Output Type | 1-Channel Mono |
Product | Microphone Preamplifiers |
Supply Type | Single |
Width | 0.93 mm |
Audio - Load Impedance | 2.2 kOhms |
Brand | Texas Instruments |
Shutdown | No Shutdown |
Class | Class-AB |
en - Input Voltage Noise Density | 56 nV/sqrt Hz |
Input Signal Type | Single |
Operating Supply Current | 188 uA |
Operating Supply Voltage | 3 V |
Output Signal Type | Single |
Product Type | Microphone Preamplifiers |
Factory Pack Quantity | 250 |
Subcategory | Audio ICs |
Unit Weight | 0.000028 oz |
For more information, please refer to datasheet
Documents
LMV1012UP-20/NOPB Datasheet |
More Information
The LMV1012 is an audio amplifier series for small form factor electret microphones. This 2-wire portfolio is designed to replace the JFET amplifier currently being used. The LMV1012 series is ideally suited for applications requiring high signal integrity in the presence of ambient or RF noise, such as in cellular communications. The LMV1012 audio amplifiers are specified to operate over a 2.2V to 5.0V supply voltage range with fixed gains of 7.8 dB, 15.6 dB, 20.9 dB, and 23.8 dB. The devices offer excellent THD, gain accuracy and temperature stability as compared to a JFET microphone.
