Description

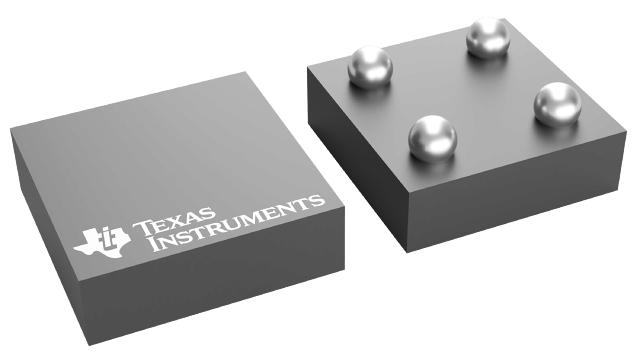

LMV1032UP-06/NOPB Texas Instruments - Yeehing Electronics
Analog input microphone preamplifier for 3-wire electret microphones
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.774 |
100 — 249 | 1.465 |
250 — 999 | 1.053 |
1,000 + | 0.55 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Microphone Preamplifiers |
RoHS | Y |
Series | LMV1032 |
Amplifier Type | Electret Microphone Preamplifier |
Number of Channels | 1 Channel |
THD plus Noise | 0.11 % |
Supply Voltage - Max | 5 V |
Supply Voltage - Min | 1.7 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-4 |
Packaging | Reel |
Product | Microphone Preamplifiers |
Brand | Texas Instruments |
Shutdown | No Shutdown |
Class | Class-AB |
en - Input Voltage Noise Density | 56 nV/sqrt Hz |
Operating Supply Current | 60 uA |
Operating Supply Voltage | 1.7 V to 5 V |
Product Type | Microphone Preamplifiers |
PSRR - Power Supply Rejection Ratio | 75 dB |
Factory Pack Quantity | 250 |
Subcategory | Audio ICs |
Unit Weight | 0.000039 oz |
For more information, please refer to datasheet
Documents
LMV1032UP-06/NOPB Datasheet |
More Information
The LMV1032s are an audio amplifier series for small form factor electret microphones. They are designed to replace the JFET preamp currently being used. The LMV1032 series is ideal for extended battery life applications, such as a Bluetooth communication link. The addition of a third pin to an electret microphones that incorporates an LMV1032 allows for a dramatic reduction in supply current as compared to the JFET equipped electret microphone. Microphone supply current is thus reduced to 60 µA, assuring longer battery life. The LMV1032 series is specified for supply voltages from 1.7V to 5V, and has fixed voltage gains of 6 dB, 15 dB and 25 dB.
