LMV1032UP-25/NOPB Texas Instruments - Yeehing Electronics

Analog input microphone preamplifier for 3-wire electret microphones

Pricing (USD)

Quantity	Unit Price
1 — 99	1.559
100 — 249	1.288
250 — 999	0.925
1,000 +	0.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Microphone Preamplifiers
RoHS	Y
Series	LMV1032
Amplifier Type	Electret Microphone Preamplifier
Number of Channels	1 Channel
THD plus Noise	0.35 %
Supply Voltage - Max	5 V
Supply Voltage - Min	1.7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT

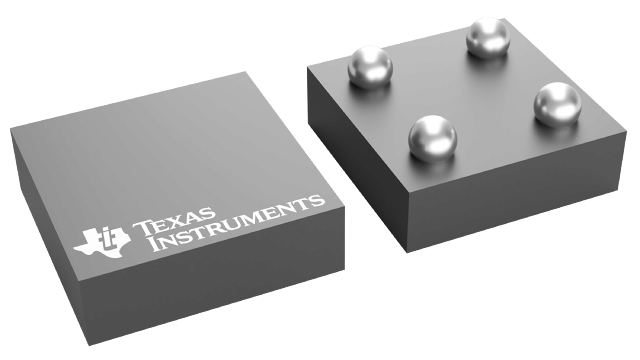

Package / Case	DSBGA-4
Packaging	Reel
Height	0.22 mm
Length	1.13 mm
Output Current	2.4 mA
Output Type	1-Channel Mono
Product	Microphone Preamplifiers
Supply Type	Single
Width	1.13 mm
Brand	Texas Instruments
Shutdown	No Shutdown
Class	Class-AB
en - Input Voltage Noise Density	56 nV/sqrt Hz
Input Signal Type	Single
Operating Supply Current	60 uA
Operating Supply Voltage	3 V
Output Signal Type	Single
Product Type	Microphone Preamplifiers
PSRR - Power Supply Rejection Ratio	65 dB
Factory Pack Quantity	250
Subcategory	Audio ICs
Unit Weight	0.000039 oz

For more information, please refer to datasheet

Documents

LMV1032UP-25/NOPB Datasheet

More Information

The LMV1032s are an audio amplifier series for small form factor electret microphones. They are designed to replace the JFET preamp currently being used. The LMV1032 series is ideal for extended battery life applications, such as a Bluetooth communication link. The addition of a third pin to an electret microphones that incorporates an LMV1032 allows for a dramatic reduction in supply current as compared to the JFET equipped electret microphone. Microphone supply current is thus reduced to 60 µA, assuring longer battery life. The LMV1032 series is specified for supply voltages from 1.7V to 5V, and has fixed voltage gains of 6 dB, 15 dB and 25 dB.
