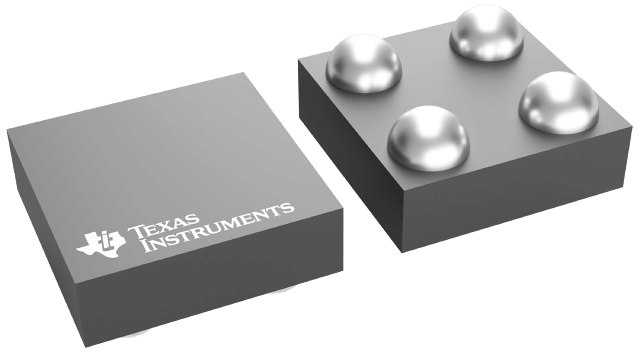

LMV1032URX-15/NOPB


YeeHing #: Y002-LMV1032URX-15/NOPB
Inventory: 7400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMV1032URX-15/NOPB Texas Instruments - Yeehing Electronics

Analog input microphone preamplifier for 3-wire electret microphones

Pricing (USD)

Quantity Unit Price
1 — 99 1.398
100 — 249 1.154
250 — 999 0.829
1,000 + 0.44

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Microphone Preamplifiers
RoHS Y
Series LMV1032
Amplifier Type Electret Microphone Preamplifier
Number of Channels 1 Channel
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case DSBGA-4
Packaging Reel
Product Microphone Preamplifiers
Brand Texas Instruments
Shutdown No Shutdown
Class Class-AB
en - Input Voltage Noise Density 56 nV/sqrt Hz
Operating Supply Current 60 uA
Product Type Microphone Preamplifiers
Factory Pack Quantity 3000
Subcategory Audio ICs

For more information, please refer to datasheet

Documents

LMV1032URX-15/NOPB Datasheet

More Information

The LMV1032s are an audio amplifier series for small form factor electret microphones. They are designed to replace the JFET preamp currently being used. The LMV1032 series is ideal for extended battery life applications, such as a Bluetooth communication link. The addition of a third pin to an electret microphones that incorporates an LMV1032 allows for a dramatic reduction in supply current as compared to the JFET equipped electret microphone. Microphone supply current is thus reduced to 60 µA, assuring longer battery life. The LMV1032 series is specified for supply voltages from 1.7V to 5V, and has fixed voltage gains of 6 dB, 15 dB and 25 dB.
