LMV221SD/NOPB Texas Instruments - Yeehing Electronics

50 MHz to 3.5 GHz 40 dB Logarithmic Power Detector for CDMA and WCDMA

Pricing (USD)

Quantity	Unit Price
1 — 99	3.378
100 — 249	2.79
250 — 999	2.004
1,000 +	1.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Detector
RoHS	Y
Type	Logarithmic Amp
Frequency Range	50 MHz to 3500 MHz
Dynamic Range dB	40 dB
Configuration	Single
Operating Supply Voltage	2.7 V to 3.3 V
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Mounting Style	SMD/SMT

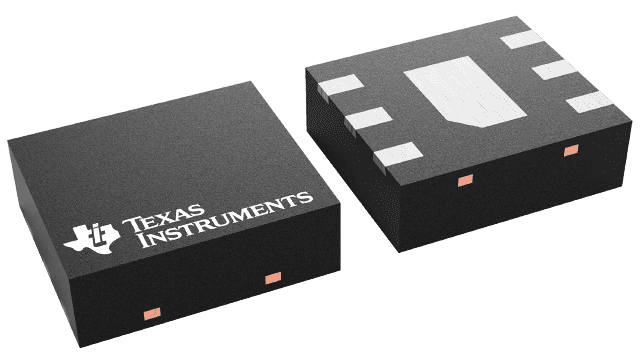

Package / Case	WSON-6
Packaging	Reel
Accuracy	0.5 dB
Series	LMV221
Brand	Texas Instruments
Output Voltage Range	0.25 V to 1.76 V
Development Kit	LMV221EVAL/NOPB
Product Type	RF Detector
Factory Pack Quantity	1000
Subcategory	Wireless & RF Integrated Circuits
Unit Weight	0.000342 oz

For more information, please refer to datasheet

Documents

LMV221SD/NOPB Datasheet

More Information

The LMV221 is a 40-dB RF power detector intended for use in CDMA and WCDMA applications. The device has an RF frequency range from 50 MHz to 3.5 GHz. It provides an accurate temperature and supply-compensated output voltage that relates linearly to the RF input power in dBm. The circuit operates with a single supply from 2.7 V to 3.3 V.
