Texas Instruments

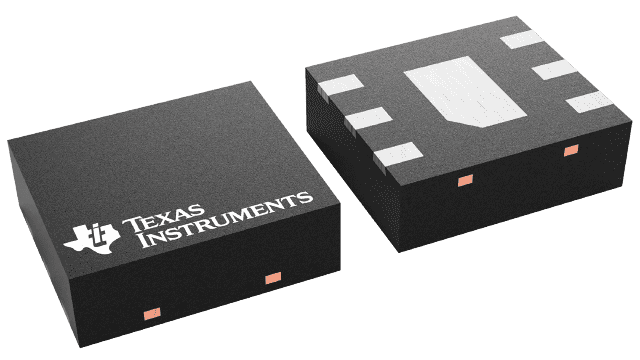

LMV221SDX/NOPB
LMV221SDX/NOPB
Regular price
$0.91 USD
Regular price
Sale price
$0.91 USD
Unit price
per
Couldn't load pickup availability
LMV221SDX/NOPB Texas Instruments - Yeehing Electronics
50 MHz to 3.5 GHz 40 dB Logarithmic Power Detector for CDMA and WCDMA
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.912 |
| 100 — 249 | 2.405 |
| 250 — 999 | 1.728 |
| 1,000 + | 0.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Detector |
| RoHS | Y |
| Type | Logarithmic Amp |
| Frequency Range | 50 MHz to 3500 MHz |
| Configuration | Single |
| Operating Supply Voltage | 2.7 V to 3.3 V |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Package / Case | WSON-6 |
| Packaging | Reel |
| Accuracy | 0.5 dB |
| Series | LMV221 |
| Brand | Texas Instruments |
| Development Kit | LMV221EVAL/NOPB |
| Product Type | RF Detector |
| Factory Pack Quantity | 4500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.000342 oz |
For more information, please refer to datasheet
Documents
| LMV221SDX/NOPB Datasheet |
More Information
The LMV221 is a 40-dB RF power detector intended for use in CDMA and WCDMA applications. The device has an RF frequency range from 50 MHz to 3.5 GHz. It provides an accurate temperature and supply-compensated output voltage that relates linearly to the RF input power in dBm. The circuit operates with a single supply from 2.7 V to 3.3 V.
