Texas Instruments
LMV225URX/NOPB
LMV225URX/NOPB
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability

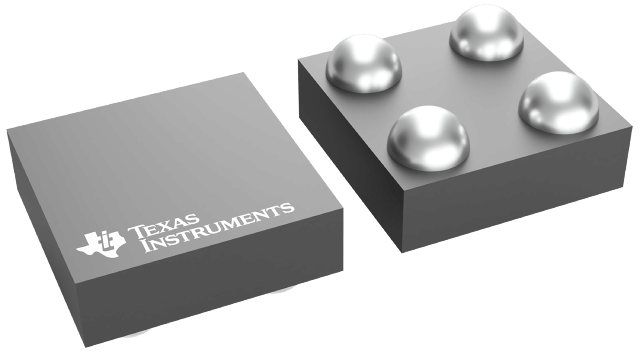

LMV225URX/NOPB Texas Instruments - Yeehing Electronics
RF Power Detector for CDMA and WCDMA in micro SMD
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.235 |
| 100 — 249 | 0.95 |
| 250 — 999 | 0.7 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Detector |
| RoHS | Y |
| Type | Logarithmic Amp |
| Frequency Range | 450 MHz to 2000 MHz |
| Configuration | Single |
| Operating Supply Voltage | 2.7 V to 5 V |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Package / Case | DSBGA-4 |
| Packaging | Reel |
| Accuracy | 1 dB |
| Series | LMV225 |
| Brand | Texas Instruments |
| Product Type | RF Detector |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.000032 oz |
For more information, please refer to datasheet
Documents
| LMV225URX/NOPB Datasheet |
More Information
The LMV225/LMV226/LMV228 are 30 dB RF power detectors intended for use in CDMA and WCDMA applications. The device has an RF frequency range from 450 MHz to 2 GHz. It provides an accurate temperature and supply compensated output voltage that relates linearly to the RF input power in dBm. The circuit operates with a single supply from 2.7V to 5.5V. The LMV225/LMV226/LMV228 have an integrated filter for low-ripple average power detection of CDMA signals with 30 dB dynamic range. Additional filtering can be applied using a single external capacitor.
