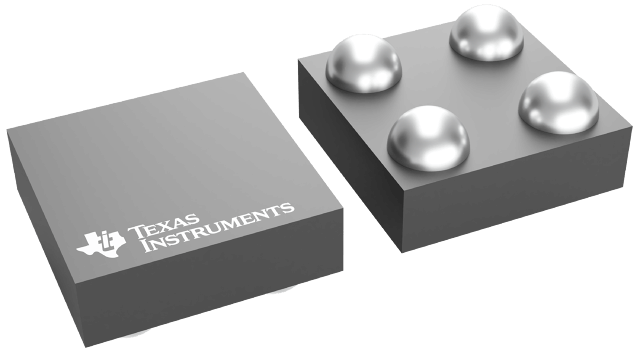

LMV226UR/NOPB Texas Instruments - Yeehing Electronics

RF Power Detectors for CDMA and WCDMA in micro SMD

Pricing (USD)

Quantity	Unit Price
1 — 99	1.304
100 — 249	1.003
250 — 999	0.739
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Detector
RoHS	Y
Type	Logarithmic Amp
Frequency Range	450 MHz to 2000 MHz
Dynamic Range dB	30 dB
Configuration	Single
Operating Supply Voltage	2.7 V to 5 V
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Mounting Style	SMD/SMT
Package / Case	DSBGA-4
Packaging	Reel
Accuracy	1 dB
Series	LMV226
Brand	Texas Instruments
Output Voltage Range	0.2 V to 2 V
Product Type	RF Detector
Factory Pack Quantity	250
Subcategory	Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

LMV226UR/NOPB Datasheet

More Information

The LMV225/LMV226/LMV228 are 30 dB RF power detectors intended for use in CDMA and WCDMA applications. The device has an RF frequency range from 450 MHz to 2 GHz. It provides an accurate temperature and supply compensated output voltage that relates linearly to the RF input power in dBm. The circuit operates with a single supply from 2.7V to 5.5V. The LMV225/LMV226/LMV228 have an integrated filter for low-ripple average power detection of CDMA signals with 30 dB dynamic range. Additional filtering can be applied using a single external capacitor.
