LMV228TL/NOPB Texas Instruments - Yeehing Electronics

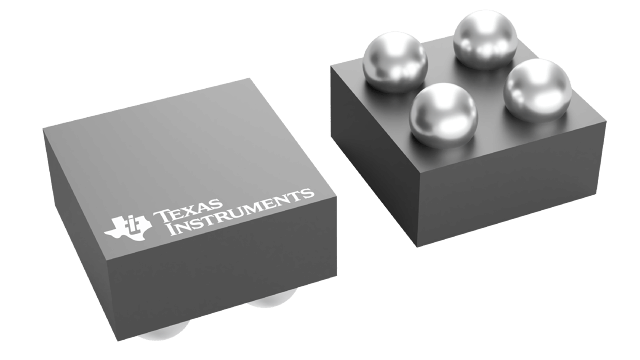

RF Power Detector for CDMA and WCDMA in micro SMD

Pricing (USD)

Quantity	Unit Price
1 — 99	1.378
100 — 249	1.06
250 — 999	0.781
1,000 +	0.39

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMV228TL/NOPB Datasheet

More Information

The LMV225/LMV226/LMV228 are 30 dB RF power detectors intended for use in CDMA and WCDMA applications. The device has an RF frequency range from 450 MHz to 2 GHz. It provides an accurate temperature and supply compensated output voltage that relates linearly to the RF input power in dBm. The circuit operates with a single supply from 2.7V to 5.5V. The LMV225/LMV226/LMV228 have an integrated filter for low-ripple average power detection of CDMA signals with 30 dB dynamic range. Additional filtering can be applied using a single external capacitor.
