LMV228TLX/NOPB Texas Instruments - Yeehing Electronics

RF Power Detector for CDMA and WCDMA in micro SMD

Pricing (USD)

Quantity	Unit Price
1 — 99	1.2
100 — 249	0.923
250 — 999	0.68
1,000 +	0.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Detector
RoHS	Y
Frequency Range	450 MHz to 2000 MHz
Configuration	Single
Operating Supply Voltage	2.7 V to 5 V
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Mounting Style	SMD/SMT

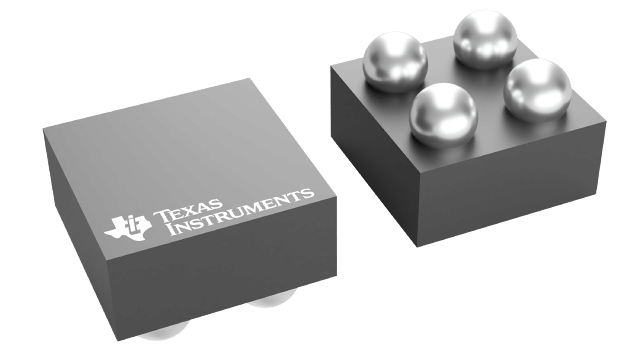

Package / Case	DSBGA-4
Packaging	Reel
Accuracy	1 dB
Series	LMV228
Brand	Texas Instruments
Product Type	RF Detector
Factory Pack Quantity	3000
Subcategory	Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

LMV228TLX/NOPB Datasheet

More Information

The LMV225/LMV226/LMV228 are 30 dB RF power detectors intended for use in CDMA and WCDMA applications. The device has an RF frequency range from 450 MHz to 2 GHz. It provides an accurate temperature and supply compensated output voltage that relates linearly to the RF input power in dBm. The circuit operates with a single supply from 2.7V to 5.5V. The LMV225/LMV226/LMV228 have an integrated filter for low-ripple average power detection of CDMA signals with 30 dB dynamic range. Additional filtering can be applied using a single external capacitor.
