Texas Instruments

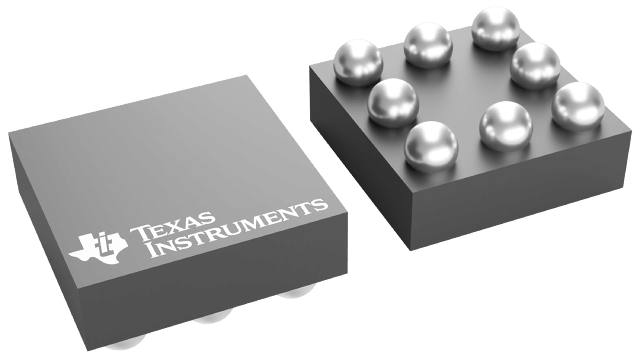

LMV232TL/NOPB
LMV232TL/NOPB
Regular price
$0.84 USD
Regular price
Sale price
$0.84 USD
Unit price
per
Couldn't load pickup availability
LMV232TL/NOPB Texas Instruments - Yeehing Electronics
Dual-Channel Integrated Mean Square Power Detector for CDMA & WCDMA
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.412 |
| 100 — 249 | 2.113 |
| 250 — 999 | 1.482 |
| 1,000 + | 0.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Detector |
| RoHS | Y |
| Type | RMS Power Detector |
| Frequency Range | 50 MHz to 2000 MHz |
| Dynamic Range dB | 23 dB |
| Configuration | Dual |
| Operating Supply Voltage | 2.5 V to 3.3 V |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Packaging | Reel |
| Accuracy | 1 dB |
| Series | LMV232 |
| Brand | Texas Instruments |
| Development Kit | LMV232TLEVAL |
| Product Type | RF Detector |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| LMV232TL/NOPB Datasheet |
More Information
The LMV232 dual RF detector is designed for RF transmit power measurement in mobile phones. This dual mean square IC is especially suited for accurate power measurement of RF signals exhibiting high peak-to-average ratios used in 3G and UMTS/CDMA applications. The LMV232 saves calibration steps and system certification and is highly accurate. The circuit operates with a single supply from 2.5 to 3.3V.
