Texas Instruments

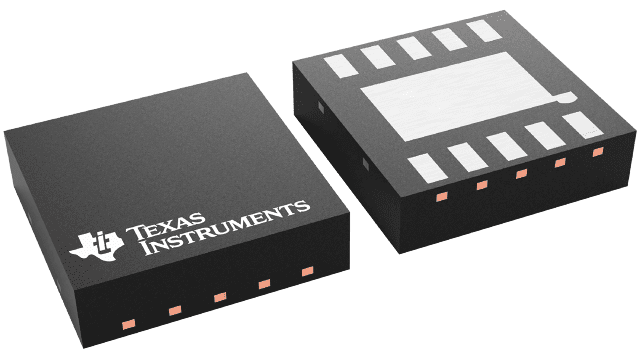

LMV242LD/NOPB
LMV242LD/NOPB
Regular price
$0.48 USD
Regular price
Sale price
$0.48 USD
Unit price
per
Couldn't load pickup availability
LMV242LD/NOPB Texas Instruments - Yeehing Electronics
Dual Output, Quad-Band GSM/GPRS Power Amplifier Controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.55 |
| 100 — 249 | 1.28 |
| 250 — 999 | 0.92 |
| 1,000 + | 0.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Detector |
| RoHS | Y |
| Type | Logarithmic Amplifier Power Detector |
| Frequency Range | 450 MHz to 2000 MHz |
| Dynamic Range dB | 50 dB |
| Configuration | Dual |
| Operating Supply Voltage | 2.6 V to 5.5 V |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Accuracy | 1.5 dB |
| Series | LMV242 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | RF Detector |
| Factory Pack Quantity | 1000 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.000691 oz |
For more information, please refer to datasheet
Documents
| LMV242LD/NOPB Datasheet |
More Information
The LMV242 is a power amplifier (PA) controller intended for use within an RF transmit power control loop in GSM/GPRS mobile phones. The LMV242 supports all single-supply PA’s including InGaP, HBT and bipolar power amplifiers. The device operates with a single supply from 2.6V to 5.5V.
