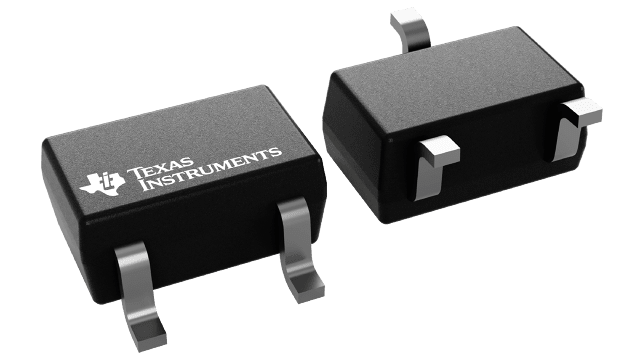

LMV321IDCKR Texas Instruments - Yeehing Electronics
Single, 5.5-V, 1-MHz, RRO operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.281 |
| 100 — 249 | 0.191 |
| 250 — 999 | 0.147 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SC70-5 |
| Supply Voltage - Max | 5.5 V |
| Output Current per Channel | 160 mA |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 1 V/us |
| CMRR - Common Mode Rejection Ratio | 50 dB to 65 dB |
| Ib - Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 130 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | LMV321 |
| Packaging | Reel |
| Amplifier Type | Low Voltage Amplifier |
| Features | EMI Hardened, Standard Amps |
| Height | 0.9 mm |
| Input Type | Rail-to-Rail |
| Length | 2 mm |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Single |
| Technology | BiCMOS |
| Width | 1.25 mm |
| Brand | Texas Instruments |
| en - Input Voltage Noise Density | 39 nV/sqrt Hz |
| In - Input Noise Current Density | 0.21 pA/sqrt Hz |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail to Positive Rail - 1 V |
| Voltage Gain dB | 100 dB |
| Unit Weight | 0.000705 oz |
For more information, please refer to datasheet
Documents
| LMV321IDCKR Datasheet |
More Information
For an upgraded version with enhanced performance, please refer to LMV321A, LMV324A, and LMV358A.
