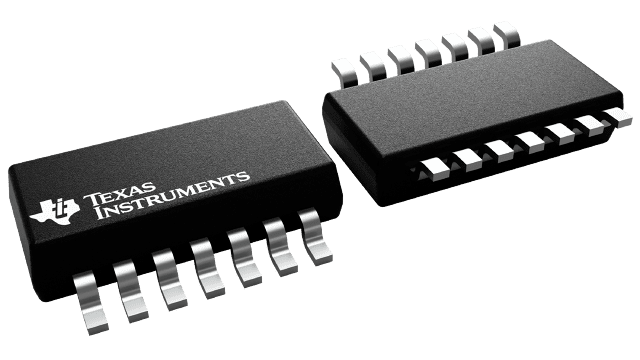

LMV324AQDYYRQ1 Texas Instruments - Yeehing Electronics
Automotive-grade, quad, 5.5-V, 1-MHz, 4-mV offset voltage, RRO operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.894 |
100 — 249 | 0.688 |
250 — 999 | 0.506 |
1,000 + | 0.25 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LMV324AQDYYRQ1 Datasheet |
More Information
The LMV3xxA-Q1 family includes single - (LMV321A-Q1), dual - (LMV358A-Q1), and quad-channel (LMV324A-Q1) low-voltage (2.5 V to 5.5 V) automotive operational amplifiers (op amps) with rail-to-rail output swing capabilities. These op amps provide a cost-effective solution for space-constrained applications such as infotainment and lighting where low-voltage operation and high capacitive-load drive are required. The capacitive-load drive of the LMV3xxA-Q1 family is 500 pF, and the resistive open-loop output impedance makes stabilization easier with much higher capacitive loads. These op amps are designed specifically for low-voltage operation (2.5 V to 5.5 V) with performance specifications similar to the LMV3xx-Q1 devices.
