Texas Instruments
LMV339IRUCR
LMV339IRUCR
Regular price
$0.13 USD
Regular price
Sale price
$0.13 USD
Unit price
per
Couldn't load pickup availability

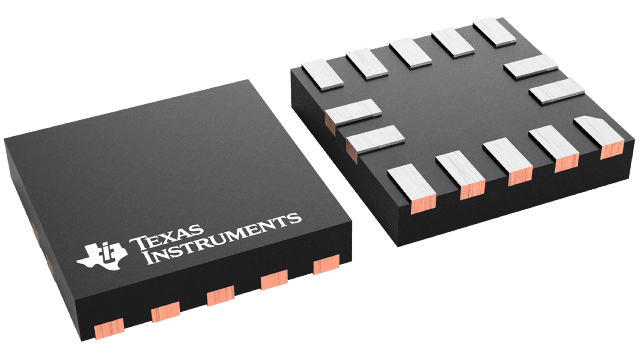

LMV339IRUCR Texas Instruments - Yeehing Electronics
Quad General Purpose Low-Voltage Comparators
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.525 |
| 100 — 249 | 0.357 |
| 250 — 999 | 0.275 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Comparators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | X2QFN-14 |
| Comparator Type | General Purpose |
| Number of Channels | 4 Channel |
| Output Type | Rail-to-Rail |
| Ib - Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 75 uA |
| Response Time | 200 ns |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Small Size |
| Product | Analog Comparators |
| Series | LMV339 |
| Brand | Texas Instruments |
| GBP - Gain Bandwidth Product | - |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | Analog Comparators |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | - 0.1 V |
| Unit Weight | 0.000300 oz |
For more information, please refer to datasheet
Documents
| LMV339IRUCR Datasheet |
More Information
The LMV393 and LMV339 devices are low-voltage (2.7 V to 5.5 V) versions of the dual and quad comparators, LM393 and LM339, which operate from 5 V to 30 V. The LMV331 is the single-comparator version.
