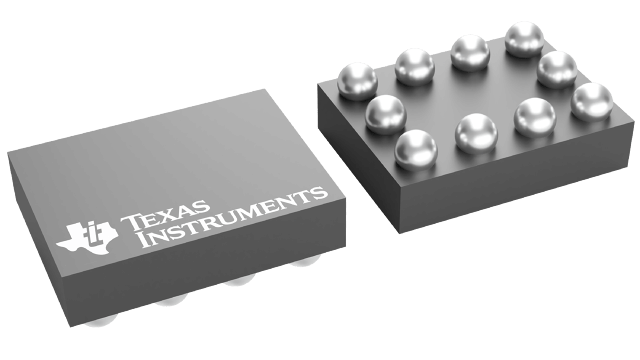

LMV712TLX/NOPB Texas Instruments - Yeehing Electronics
Dual, 5.5-V, 5-MHz, RRIO, 35-mA output current operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.223 |
| 100 — 249 | 1.01 |
| 250 — 999 | 0.726 |
| 1,000 + | 0.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-10 |
| Supply Voltage - Max | 5.5 V |
| Output Current per Channel | 25 mA |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 5 MHz |
| SR - Slew Rate | 5 V/us |
| CMRR - Common Mode Rejection Ratio | 50 dB to 80 dB |
| Ib - Input Bias Current | 115 pA |
| Vos - Input Offset Voltage | 3 mV |
| Supply Voltage - Min | 2.7 V |
| Operating Supply Current | 1.17 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | Shutdown |
| Series | LMV712-N |
| Packaging | Reel |
| Features | Shutdown, Small Size |
| Input Type | Rail-to-Rail |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Single |
| Brand | Texas Instruments |
| Operating Supply Voltage | 2.7 V to 5.5 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000127 oz |
For more information, please refer to datasheet
Documents
| LMV712TLX/NOPB Datasheet |
More Information
The LMV712-N devices are high-performance BiCMOS operational amplifiers intended for applications requiring rail-to-rail inputs combined with speed and low noise. They offer a bandwidth of 5 MHz and a slew rate of 5 V/µs, and can handle capacitive loads of up to 200 pF without oscillation.
