Texas Instruments
LMV7272TLX/NOPB
LMV7272TLX/NOPB
Regular price
$0.42 USD
Regular price
Sale price
$0.42 USD
Unit price
per
Couldn't load pickup availability

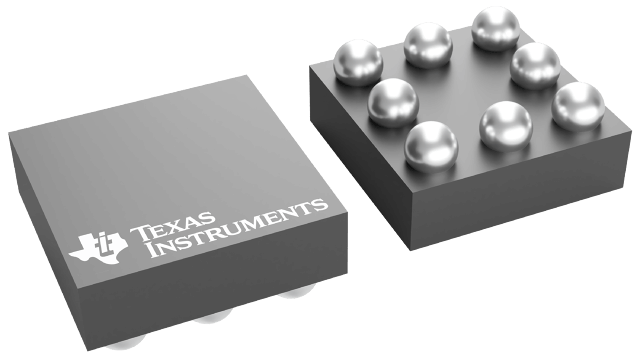

LMV7272TLX/NOPB Texas Instruments - Yeehing Electronics
Dual 1.8V Low Power Comparators with Rail-to-Rail Input
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.331 |
| 100 — 249 | 1.099 |
| 250 — 999 | 0.789 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Comparators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | uSMD |
| Comparator Type | General Purpose |
| Number of Channels | 2 Channel |
| Output Type | Push-Pull |
| Ib - Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 4 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.8 V |
| Operating Supply Current | 27 uA |
| Response Time | 1.8 us |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Small Size |
| Height | 0.36 mm |
| Input Type | Rail-to-Rail |
| Length | 1.51 mm |
| Product | Analog Comparators |
| Series | LMV7272 |
| Supply Type | Single |
| Technology | BiCMOS |
| Type | Low Power Comparator |
| Width | 1.51 mm |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| CMRR - Common Mode Rejection Ratio | 78 dB |
| GBP - Gain Bandwidth Product | - |
| Operating Supply Voltage | 3 V, 5 V |
| Product Type | Analog Comparators |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | - 0.1 V |
| Unit Weight | 0.000099 oz |
For more information, please refer to datasheet
Documents
| LMV7272TLX/NOPB Datasheet |
More Information
The LMV727x devices are rail-to-rail input low power comparators, characterized at supply voltages 1.8 V, 2.7 V, and 5 V. They consume as little as 9-µA supply current per channel while achieving a 800-ns propagation delay.
