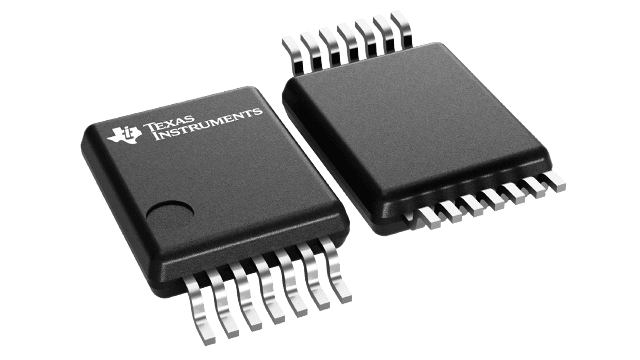

LMV824NDGVR Texas Instruments - Yeehing Electronics
Quad, 5.5-V, 5.6-MHz, RRO operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.29 |
100 — 249 | 1.066 |
250 — 999 | 0.766 |
1,000 + | 0.40 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LMV824NDGVR Datasheet |
More Information
The LMV821/LMV822/LMV824 op amps bring performance and economy to low voltage, low power systems. With a 5 MHz unity-gain frequency, at 2.7 V supply, and a 1.4 V/µs slew rate, the quiescent current is only 220 µA per amplifier. They provide rail to rail output (RRO) swing into 600 Ω load. The input common-mode voltage range includes ground and the maximum input offset voltage is 3.5 mV. They are also capable of easily driving large capacitive loads as indicated in the applications section.
