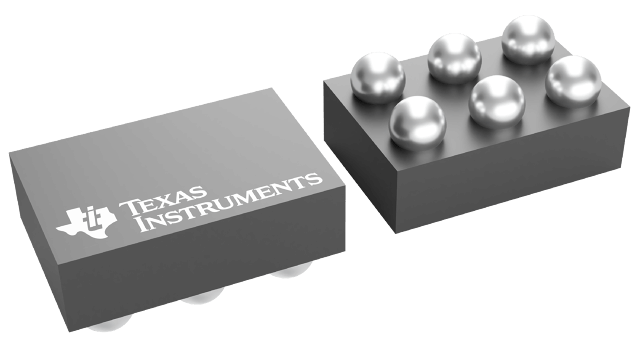

LMV981TLX/NOPB Texas Instruments - Yeehing Electronics

Single, 5-V, 1.5-MHz, 65-mA output current, RRIO operational amplifier with shutdown

Pricing (USD)

Quantity	Unit Price
1 — 99	0.988
100 — 249	0.76
250 — 999	0.56
1,000 +	0.28

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Operational Amplifiers - Op Amps
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	USMD-6
Supply Voltage - Max	5 V
Output Current per Channel	8 mA
Number of Channels	1 Channel
GBP - Gain Bandwidth Product	1.5 MHz
SR - Slew Rate	0.42 V/us
CMRR - Common Mode Rejection Ratio	60 dB to 86 dB
Ib - Input Bias Current	35 nA
Vos - Input Offset Voltage	4 mV
Supply Voltage - Min	1.8 V
Operating Supply Current	116 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Shutdown	Shutdown
Series	LMV981-N
Packaging	Reel
Features	Shutdown, Small Size
Height	0.36 mm
Input Type	Rail-to-Rail
Length	1.54 mm
Output Type	Rail-to-Rail
Product	Operational Amplifiers
Supply Type	Single
Technology	BiCMOS
Width	1.03 mm
Brand	Texas Instruments
en - Input Voltage Noise Density	50 nV/sqrt Hz
In - Input Noise Current Density	0.07 pA/sqrt Hz
Operating Supply Voltage	3 V
Product Type	Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio	75 dB
Factory Pack Quantity	3000
Subcategory	Amplifier ICs
Voltage Gain dB	113 dB
Unit Weight	0.000071 oz

For more information, please refer to datasheet

Documents

LMV981TLX/NOPB Datasheet

More Information

LMV98x-N are low-voltage, low-power operational amplifiers. LMV98x-N operate from 1.8-V to 5-V supply voltages and have rail-to-rail input and output. LMV98x-N input common mode voltage extends 200mV beyond the supplies which enables user enhanced functionality beyond the supply voltage range. The output can swing rail-to-rail unloaded and within 105 mV from the rail with 600-Ω load at 1.8-V supply. LMV98x-N are optimized to work at 1.8 V, which makes them ideal for portable two-cell battery powered systems and single cell Li-Ion systems.
