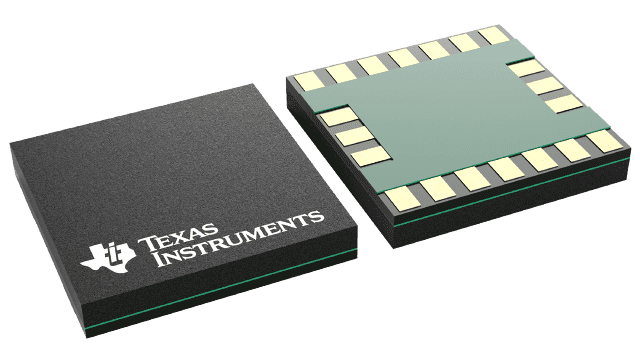

Texas Instruments
LMX2433SLEX/NOPB
LMX2433SLEX/NOPB
Regular price
$0.93 USD
Regular price
Sale price
$0.93 USD
Unit price
per
Couldn't load pickup availability
LMX2433SLEX/NOPB Texas Instruments - Yeehing Electronics
3.6-GHz/1.7-GHz PLLatinum dual high frequency synthesizer for RF personal communications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.685 |
| 100 — 249 | 2.352 |
| 250 — 999 | 1.649 |
| 1,000 + | 0.93 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Phase Locked Loops - PLL |
| RoHS | Y |
| Output Frequency Range | 500 MHz to 3600 MHz |
| Supply Voltage - Max | 2.75 V |
| Supply Voltage - Min | 2.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | ULGA-20 |
| Packaging | Reel |
| Series | LMX2433 |
| Brand | Texas Instruments |
| Operating Supply Current | 3.2 mA |
| Operating Supply Voltage | 2.25 V to 2.75 V |
| Product Type | PLLs - Phase Locked Loops |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Tradename | PLLATINUM |
| Unit Weight | 0.000603 oz |
For more information, please refer to datasheet
Documents
| LMX2433SLEX/NOPB Datasheet |
More Information
Using a proprietary digital-phase, locked-loop technique, the LMX243x devices generate very stable, low-noise control signals for RF and IF voltage controlled oscillators. Both the RF and IF synthesizers include a two-level programmable charge pump. Both the RF and IF PLLs have dedicated fastlock circuitry with integrated time-out counters which require only a single word write to power up or change frequencies.
