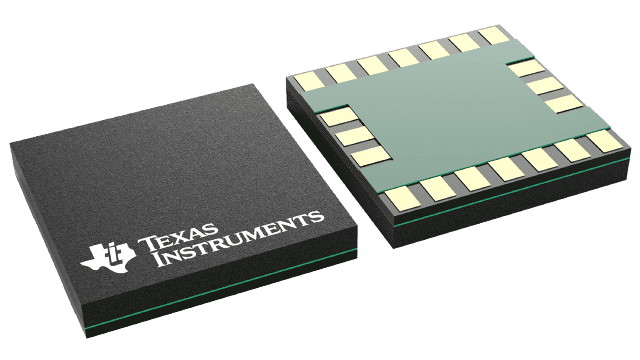

LMX2434SLEX/NOPB


YeeHing #: Y013-LMX2434SLEX/NOPB
Inventory: 6400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMX2434SLEX/NOPB Texas Instruments - Yeehing Electronics

5.0-GHz/2.5-GHz PLLatinum low power dual frequency synthesizer for RF personal communications

Pricing (USD)

Quantity Unit Price
1 — 99 2.945
100 — 249 2.581
250 — 999 1.809
1,000 + 1.02

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Phase Locked Loops - PLL
RoHS Y
Output Frequency Range 1000 MHz to 5000 MHz
Supply Voltage - Max 2.75 V
Supply Voltage - Min 2.25 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Package / Case ULGA-20
Packaging Reel
Series LMX2434
Brand Texas Instruments
Development Kit LMX2434EVAL/NOPB
Operating Supply Current 4.6 mA
Operating Supply Voltage 2.25 V to 2.75 V
Product Type PLLs - Phase Locked Loops
Factory Pack Quantity 2500
Subcategory Wireless & RF Integrated Circuits
Tradename PLLATINUM
Unit Weight 0.000603 oz

For more information, please refer to datasheet

Documents

LMX2434SLEX/NOPB Datasheet

More Information

Using a proprietary digital-phase, locked-loop technique, the LMX243x devices generate very stable, low-noise control signals for RF and IF voltage controlled oscillators. Both the RF and IF synthesizers include a two-level programmable charge pump. Both the RF and IF PLLs have dedicated fastlock circuitry with integrated time-out counters which require only a single word write to power up or change frequencies.
