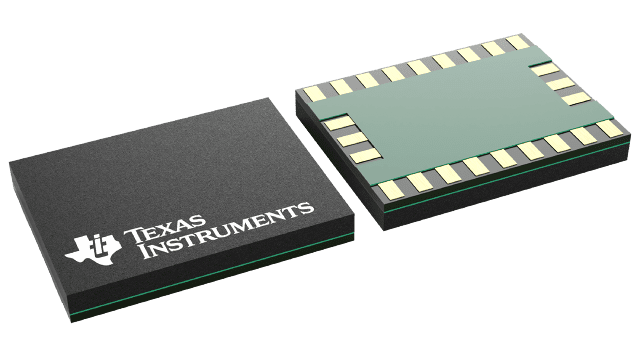

LMX2470SLEX Texas Instruments - Yeehing Electronics

2.6-GHz delta-sigma fractional-N PLL with 800-MHz integer-N PLL

Pricing (USD)

Quantity	Unit Price
1 — 99	3.238
100 — 249	2.64
250 — 999	2.075
1,000 +	5.49

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Phase Locked Loops - PLL
RoHS	Y
Output Frequency Range	500 MHz to 2600 MHz
Supply Voltage - Max	2.75 V
Supply Voltage - Min	2.25 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	ULGA-24
Packaging	Reel
Series	LMX2470
Brand	Texas Instruments
Operating Supply Current	3.9 mA
Operating Supply Voltage	2.25 V to 2.75 V
Product Type	PLLs - Phase Locked Loops
Factory Pack Quantity	2500
Subcategory	Wireless & RF Integrated Circuits
Unit Weight	0.000804 oz

For more information, please refer to datasheet

Documents

LMX2470SLEX Datasheet

More Information

The LMX2470 is a low power, high performance delta-sigma fractional-N PLL with an auxiliary integer-N PLL. The device is fabricated using TI’s advanced BiCMOS process.
