Texas Instruments
LMX2470SLEX/NOPB
LMX2470SLEX/NOPB
Regular price
$1.41 USD
Regular price
Sale price
$1.41 USD
Unit price
per
Couldn't load pickup availability

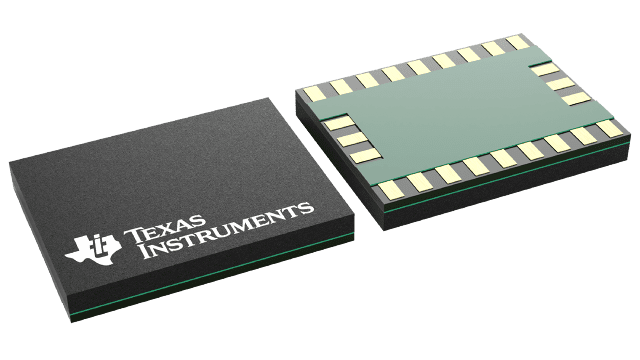

LMX2470SLEX/NOPB Texas Instruments - Yeehing Electronics
2.6-GHz delta-sigma fractional-N PLL with 800-MHz integer-N PLL
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.238 |
| 100 — 249 | 2.64 |
| 250 — 999 | 2.075 |
| 1,000 + | 1.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Phase Locked Loops - PLL |
| RoHS | Y |
| Output Frequency Range | 500 MHz to 2600 MHz |
| Supply Voltage - Max | 2.75 V |
| Supply Voltage - Min | 2.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | ULGA-24 |
| Packaging | Reel |
| Series | LMX2470 |
| Brand | Texas Instruments |
| Operating Supply Current | 3.9 mA |
| Operating Supply Voltage | 2.25 V to 2.75 V |
| Product Type | PLLs - Phase Locked Loops |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.000804 oz |
For more information, please refer to datasheet
Documents
| LMX2470SLEX/NOPB Datasheet |
More Information
The LMX2470 is a low power, high performance delta-sigma fractional-N PLL with an auxiliary integer-N PLL. The device is fabricated using TI’s advanced BiCMOS process.
