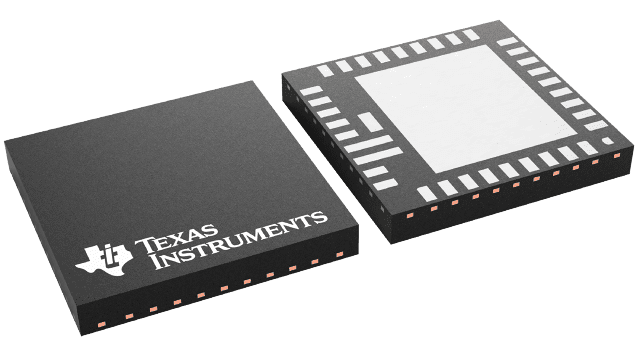

LMX2531LQ1415E/NOPB Texas Instruments - Yeehing Electronics
High performance frequency synthesizer system with integrated VCO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.123 |
| 100 — 249 | 8.842 |
| 250 — 999 | 6.818 |
| 1,000 + | 4.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Phase Locked Loops - PLL |
| RoHS | Y |
| Type | PLL Frequency Synthesizer |
| Number of Circuits | 1 |
| Maximum Input Frequency | 80 MHz |
| Minimum Input Frequency | 5 MHz |
| Output Frequency Range | 553 MHz to 3132 MHz |
| Supply Voltage - Max | 3.2 V |
| Supply Voltage - Min | 2.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-36 |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Features | Integrated VCO , Integrated VCO |
| Height | 0.8 mm |
| Length | 6 mm |
| Series | LMX2531 |
| Width | 6 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 32 mA |
| Operating Supply Voltage | 2.8 V to 3.2 V |
| Product Type | PLLs - Phase Locked Loops |
| Factory Pack Quantity | 1000 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.007055 oz |
For more information, please refer to datasheet
Documents
| LMX2531LQ1415E/NOPB Datasheet |
More Information
The LMX2531 is a low-power, high-performance frequency synthesizer system which includes a fully integrated delta-sigma PLL and VCO with fully integrated tank circuit. The third and fourth poles are also integrated and adjustable. Ultra-low noise and high-precision LDOs are integrated for the PLL and VCO, which yield higher supply-noise immunity and more consistent performance. When combined with a high-quality reference oscillator, the LMX2531 device generates very stable, low-noise local-oscillator signals for up and down conversion in wireless communication devices. The LMX2531 device is a monolithic integrated circuit, fabricated in an advanced BiCMOS process. Several different versions of this product accommodate different frequency bands.
