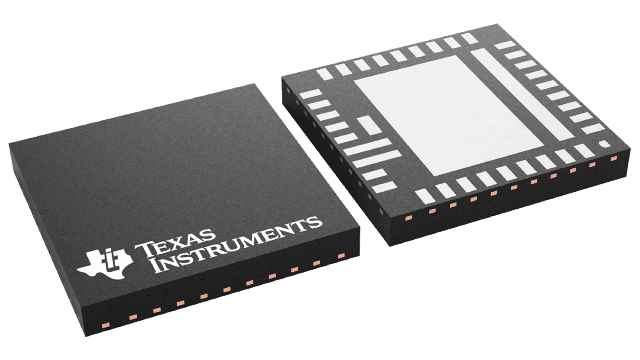

LMX2531LQ1742/NOPB


YeeHing #: Y013-LMX2531LQ1742/NOPB
Inventory: 6800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMX2531LQ1742/NOPB Texas Instruments - Yeehing Electronics

High performance frequency synthesizer system with integrated VCO

Pricing (USD)

Quantity Unit Price
1 — 99 12.148
100 — 249 10.611
250 — 999 8.182
1,000 + 5.12

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Phase Locked Loops - PLL
RoHS Y
Output Frequency Range 553 MHz to 3132 MHz
Supply Voltage - Max 3.2 V
Supply Voltage - Min 2.8 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Package / Case WQFN-36
Qualification AEC-Q100
Packaging Reel
Features Integrated VCO , Integrated VCO
Series LMX2531
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 32 mA
Operating Supply Voltage 2.8 V to 3.2 V
Product Type PLLs - Phase Locked Loops
Factory Pack Quantity 250
Subcategory Wireless & RF Integrated Circuits
Unit Weight 0.002896 oz

For more information, please refer to datasheet

Documents

LMX2531LQ1742/NOPB Datasheet

More Information

The LMX2531 is a low-power, high-performance frequency synthesizer system which includes a fully integrated delta-sigma PLL and VCO with fully integrated tank circuit. The third and fourth poles are also integrated and adjustable. Ultra-low noise and high-precision LDOs are integrated for the PLL and VCO, which yield higher supply-noise immunity and more consistent performance. When combined with a high-quality reference oscillator, the LMX2531 device generates very stable, low-noise local-oscillator signals for up and down conversion in wireless communication devices. The LMX2531 device is a monolithic integrated circuit, fabricated in an advanced BiCMOS process. Several different versions of this product accommodate different frequency bands.
