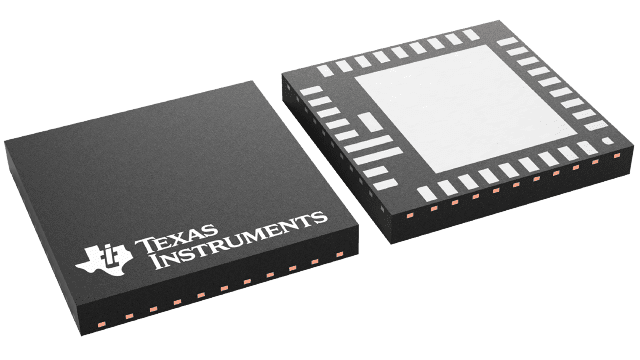

LMX2531LQE2820E/NOPB Texas Instruments - Yeehing Electronics

High performance frequency synthesizer system with integrated VCO

Pricing (USD)

Quantity	Unit Price
1 — 99	10.123
100 — 249	8.842
250 — 999	6.818
1,000 +	4.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Phase Locked Loops - PLL
RoHS	Y
Type	PLL Frequency Synthesizer
Number of Circuits	1
Maximum Input Frequency	80 MHz
Minimum Input Frequency	5 MHz
Output Frequency Range	553 MHz to 3132 MHz
Supply Voltage - Max	3.2 V
Supply Voltage - Min	2.8 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-36
Packaging	Reel
Features	Integrated VCO , Integrated VCO
Height	0.8 mm
Length	6 mm
Series	LMX2531
Width	6 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	32 mA
Operating Supply Voltage	2.8 V to 3.2 V
Product Type	PLLs - Phase Locked Loops
Factory Pack Quantity	250
Subcategory	Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

LMX2531LQE2820E/NOPB Datasheet

More Information

The LMX2531 is a low-power, high-performance frequency synthesizer system which includes a fully integrated delta-sigma PLL and VCO with fully integrated tank circuit. The third and fourth poles are also integrated and adjustable. Ultra-low noise and high-precision LDOs are integrated for the PLL and VCO, which yield higher supply-noise immunity and more consistent performance. When combined with a high-quality reference oscillator, the LMX2531 device generates very stable, low-noise local-oscillator signals for up and down conversion in wireless communication devices. The LMX2531 device is a monolithic integrated circuit, fabricated in an advanced BiCMOS process. Several different versions of this product accommodate different frequency bands.
