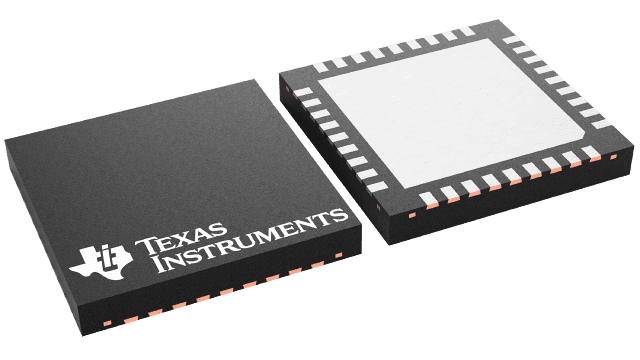

LMX2541SQ2380E/NOPB


YeeHing #: Y013-LMX2541SQ2380E/NOPB
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMX2541SQ2380E/NOPB Texas Instruments - Yeehing Electronics

Ultra-low noise PLLatinum frequency synthesizer with integrated VCO

Pricing (USD)

Quantity Unit Price
1 — 99 11.964
100 — 249 10.45
250 — 999 8.057
1,000 + 5.04

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Phase Locked Loops - PLL
RoHS Y
Type PLL Frequency Synthesizer
Number of Circuits 1
Maximum Input Frequency 6000 MHz
Minimum Input Frequency 5 MHz
Output Frequency Range 32 MHz to 4000 MHz
Supply Voltage - Max 3.45 V
Supply Voltage - Min 3.15 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case WQFN-36
Packaging Reel
Features Integrated VCO , Integrated VCO
Height 0.8 mm
Length 6 mm
Series LMX2541
Width 6 mm
Brand Texas Instruments
Input Level 0.4 V, 1.6 V
Output Level 0.4 V, 2 V
Moisture Sensitive Yes
Operating Supply Current 120 mA
Operating Supply Voltage 3.15 V to 3.45 V
Product Type PLLs - Phase Locked Loops
Factory Pack Quantity 1000
Subcategory Wireless & RF Integrated Circuits
Tradename PLLATINUM
Unit Weight 0.003048 oz

For more information, please refer to datasheet

Documents

LMX2541SQ2380E/NOPB Datasheet

More Information

The LMX2541 is an ultra low-noise frequency synthesizer which integrates a high performance delta-sigma fractional N PLL, a VCO with fully integrated tank circuit, and an optional frequency divider. The PLL offers an unprecedented normalized noise floor of -225 dBc/Hz and can be operated with up to 104 MHz of phase-detector rate (comparison frequency) in both integer and fractional modes. The PLL can also be configured to work with an external VCO.
