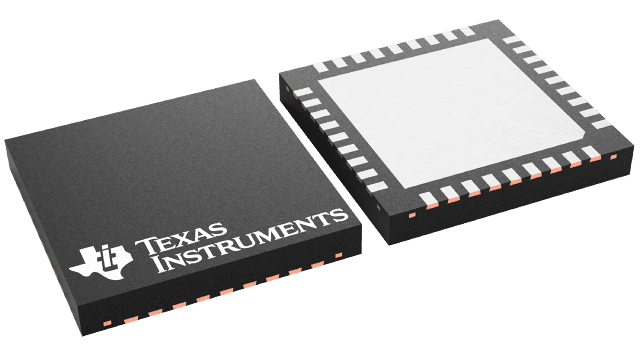

LMX2541SQE2690E/NOPB Texas Instruments - Yeehing Electronics

Ultra-low noise PLLatinum frequency synthesizer with integrated VCO

Pricing (USD)

Quantity	Unit Price
1 — 99	14.356
100 — 249	12.54
250 — 999	9.668
1,000 +	6.05

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Phase Locked Loops - PLL
RoHS	Y
Type	PLL Frequency Synthesizer
Number of Circuits	1
Maximum Input Frequency	6000 MHz
Minimum Input Frequency	5 MHz
Output Frequency Range	32 MHz to 4000 MHz
Supply Voltage - Max	3.45 V
Supply Voltage - Min	3.15 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	WQFN-36
Packaging	Reel
Features	Integrated VCO , Integrated VCO
Height	0.8 mm
Length	6 mm
Series	LMX2541
Width	6 mm
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	120 mA
Operating Supply Voltage	3.15 V to 3.45 V
Product Type	PLLs - Phase Locked Loops
Factory Pack Quantity	250
Subcategory	Wireless & RF Integrated Circuits
Tradename	PLLATINUM

For more information, please refer to datasheet

Documents

LMX2541SQE2690E/NOPB Datasheet

More Information

The LMX2541 is an ultra low-noise frequency synthesizer which integrates a high performance delta-sigma fractional N PLL, a VCO with fully integrated tank circuit, and an optional frequency divider. The PLL offers an unprecedented normalized noise floor of -225 dBc/Hz and can be operated with up to 104 MHz of phase-detector rate (comparison frequency) in both integer and fractional modes. The PLL can also be configured to work with an external VCO.
