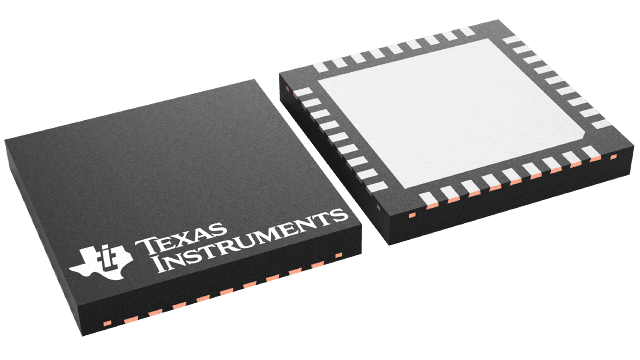

LMX2541SQE3030E/NOPB Texas Instruments - Yeehing Electronics
Ultra-low noise PLLatinum frequency synthesizer with integrated VCO
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 14.356 |
100 — 249 | 12.54 |
250 — 999 | 9.668 |
1,000 + | 6.05 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Phase Locked Loops - PLL |
RoHS | Y |
Type | PLL Frequency Synthesizer |
Number of Circuits | 1 |
Maximum Input Frequency | 6000 MHz |
Minimum Input Frequency | 5 MHz |
Output Frequency Range | 32 MHz to 4000 MHz |
Supply Voltage - Max | 3.45 V |
Supply Voltage - Min | 3.15 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-36 |
Packaging | Reel |
Features | Integrated VCO , Integrated VCO |
Height | 0.8 mm |
Length | 6 mm |
Series | LMX2541 |
Width | 6 mm |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Current | 120 mA |
Operating Supply Voltage | 3.15 V to 3.45 V |
Product Type | PLLs - Phase Locked Loops |
Factory Pack Quantity | 250 |
Subcategory | Wireless & RF Integrated Circuits |
Tradename | PLLATINUM |
For more information, please refer to datasheet
Documents
LMX2541SQE3030E/NOPB Datasheet |
More Information
The LMX2541 is an ultra low-noise frequency synthesizer which integrates a high performance delta-sigma fractional N PLL, a VCO with fully integrated tank circuit, and an optional frequency divider. The PLL offers an unprecedented normalized noise floor of -225 dBc/Hz and can be operated with up to 104 MHz of phase-detector rate (comparison frequency) in both integer and fractional modes. The PLL can also be configured to work with an external VCO.
