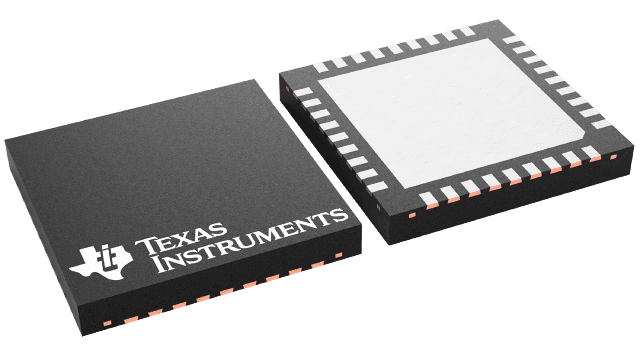

LMX2541SQE3320E/NOPB Texas Instruments - Yeehing Electronics
Ultra-low noise PLLatinum frequency synthesizer with integrated VCO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.356 |
| 100 — 249 | 12.54 |
| 250 — 999 | 9.668 |
| 1,000 + | 6.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Phase Locked Loops - PLL |
| RoHS | Y |
| Type | PLL Frequency Synthesizer |
| Number of Circuits | 1 |
| Maximum Input Frequency | 6000 MHz |
| Minimum Input Frequency | 5 MHz |
| Output Frequency Range | 32 MHz to 4000 MHz |
| Supply Voltage - Max | 3.45 V |
| Supply Voltage - Min | 3.15 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-36 |
| Packaging | Reel |
| Features | Integrated VCO , Integrated VCO |
| Height | 0.8 mm |
| Length | 6 mm |
| Series | LMX2541 |
| Width | 6 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 120 mA |
| Operating Supply Voltage | 3.15 V to 3.45 V |
| Product Type | PLLs - Phase Locked Loops |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Integrated Circuits |
| Tradename | PLLATINUM |
| Unit Weight | 0.003841 oz |
For more information, please refer to datasheet
Documents
| LMX2541SQE3320E/NOPB Datasheet |
More Information
The LMX2541 is an ultra low-noise frequency synthesizer which integrates a high performance delta-sigma fractional N PLL, a VCO with fully integrated tank circuit, and an optional frequency divider. The PLL offers an unprecedented normalized noise floor of -225 dBc/Hz and can be operated with up to 104 MHz of phase-detector rate (comparison frequency) in both integer and fractional modes. The PLL can also be configured to work with an external VCO.
