Texas Instruments

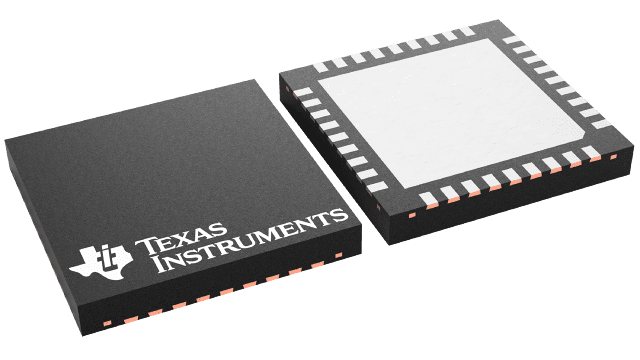

LMX2571NJKR
LMX2571NJKR
Regular price
$3.90 USD
Regular price
Sale price
$3.90 USD
Unit price
per
Couldn't load pickup availability
LMX2571NJKR Texas Instruments - Yeehing Electronics
1.34-GHz, low-power, extreme-temperature RF synthesizer with frequency-shift keying (FSK) modulation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.24 |
| 100 — 249 | 8.071 |
| 250 — 999 | 6.223 |
| 1,000 + | 3.90 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Phase Locked Loops - PLL |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Integrated VCO , FSK modulation, Integer-Boundary Spurs (IBS) removal, Integrated VCO, Wideband |
| Series | LMX2571 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | PLLs - Phase Locked Loops |
| Factory Pack Quantity | 2500 |
| Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
| LMX2571NJKR Datasheet |
More Information
The LMX2571 is a low-power, high-performance, wideband PLLatinum RF synthesizer that integrates a delta-sigma fractional N PLL, multiple core voltage-controlled oscillator (VCO), programmable output dividers and two output buffers. The VCO cores work up to 5.376 GHz resulting in continuous output frequency range of 10 MHz to 1344 MHz.
