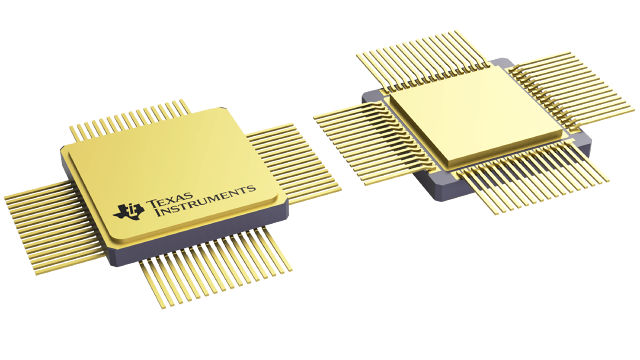

LMX2615W-MPR


YeeHing #: Y013-LMX2615W-MPR
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMX2615W-MPR Texas Instruments - Yeehing Electronics

Space grade 40-MHz to 15-GHz wideband synthesizer with phase synchronization and JESD204B support

Pricing (USD)

Quantity Unit Price
1 — 99 7056.0
100 — 249 6678.0
250 — 999 6300.0
1,000 + 4939.20

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

LMX2615W-MPR Datasheet

More Information

The LMX2615-SP is a high performance wideband phase-locked loop (PLL) with integrated voltage controlled oscillator (VCO) and voltage regulators that can output any frequency from 40 MHz and 15.2 GHz without a doubler, which eliminates the need for ½ harmonic filters. The VCO on this device covers an entire octave so the frequency coverage is complete down to 40 MHz. The high performance PLL with a figure of merit of –236 dBc/Hz and high phase detector frequency can attain very low in-band noise and integrated jitter.
