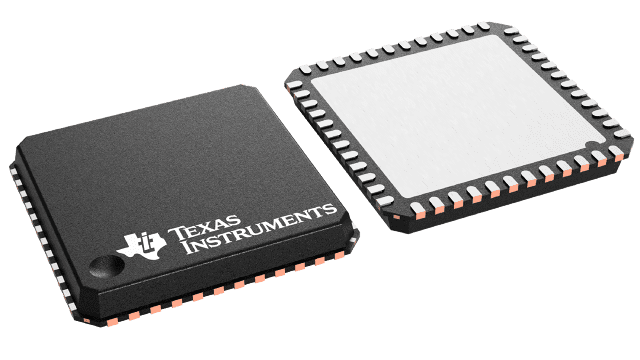

LMX2820RTCR Texas Instruments - Yeehing Electronics

22.6-GHz wideband RF synthesizer with phase synchronization, JESD and <5-µs frequency calibration

Pricing (USD)

Quantity	Unit Price
1 — 99	107.464
100 — 249	104.232
250 — 999	86.779
1,000 +	56.56

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LMX2820RTCR Datasheet

More Information

The LMX2820 is a high-performance, wideband synthesizer that can generate any frequency in the range of 45 MHz to 22.6 GHz. The high performance PLL with figure of merit of –236 dBc/Hz and high phase detector frequency can attain very low in-band noise and integrated jitter. The high-speed N-divider has no pre-divider, thus significantly reducing the amplitude and number of spurs. There is also a programmable input multiplier to mitigate integer boundary spurs.
