Texas Instruments

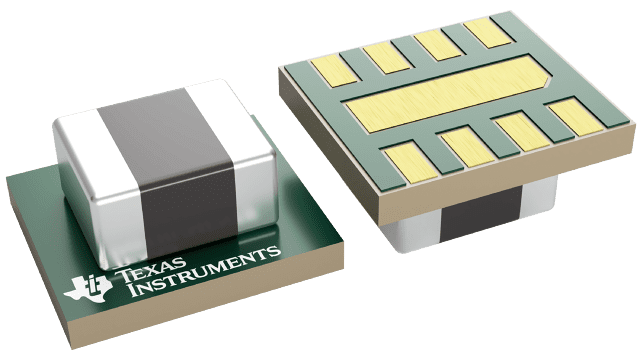

LMZ10500SILR
LMZ10500SILR
Regular price
$0.89 USD
Regular price
Sale price
$0.89 USD
Unit price
per
Couldn't load pickup availability
LMZ10500SILR Texas Instruments - Yeehing Electronics
5.5V, 0.5A Step-Down DC/DC Power Module in 3mm × 2.6mm Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.555 |
| 100 — 249 | 2.239 |
| 250 — 999 | 1.57 |
| 1,000 + | 0.89 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 3,000 |
| Package | Pins | uSiP (SIL) | 8 |
For more information, please refer to datasheet
Documents
| LMZ10500SILR Datasheet |
More Information
The LMZ10500 nano module is an easy-to-use step-down DC/DC solution capable of driving up to 650 mA load in space-constrained applications. Only an input capacitor, an output capacitor, a small VCON filter capacitor, and two resistors are required for basic operation. The nano module comes in an 8-pin µSiP footprint package with an integrated inductor. Internal current limit based soft-start function, current overload protection, and thermal shutdown are also provided.
