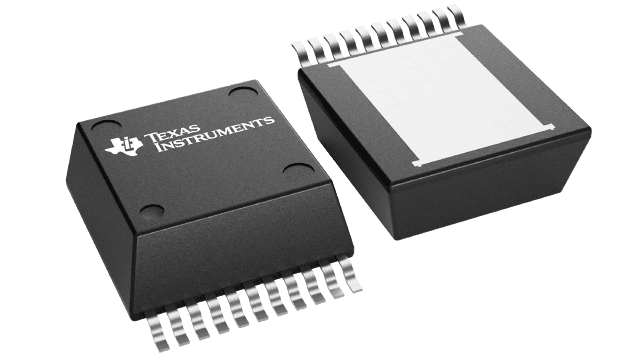

LMZ12010TZ/NOPB Texas Instruments - Yeehing Electronics

10A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Pricing (USD)

Quantity	Unit Price
1 — 99	17.347
100 — 249	15.153
250 — 999	11.683
1,000 +	8.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-PMOD-11
Output Voltage	800 mV to 6 V
Output Current	10 A
Number of Outputs	2 Output
Input Voltage MAX	20 V
Input Voltage MIN	6 V
Switching Frequency	350 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	LMZ12010
Packaging	Tube
Operating Temperature Range	- 40 C to + 85 C
Type	Voltage Converter
Brand	Texas Instruments
Load Regulation	1 mV/A
Moisture Sensitive	Yes
Operating Supply Current	1 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	32
Subcategory	PMIC - Power Management ICs
Tradename	SIMPLE SWITCHER
Unit Weight	0.021043 oz

For more information, please refer to datasheet

Documents

LMZ12010TZ/NOPB Datasheet

More Information

The LMZ12010 SIMPLE SWITCHER power module is an easy-to-use step-down DC-DC solution capable of driving up to 10-A load. The LMZ12010 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
