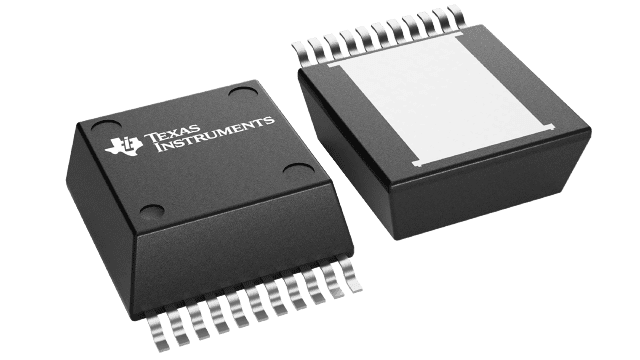

LMZ13610TZE/NOPB Texas Instruments - Yeehing Electronics
10A SIMPLE SWITCHER® Power Module with 36V Maximum Input Voltage
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 22.657 |
| 100 — 249 | 19.791 |
| 250 — 999 | 15.26 |
| 1,000 + | 10.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-PMOD-11 |
| Output Voltage | 800 mV to 6 V |
| Output Current | 10 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Input Voltage MIN | 6 V |
| Switching Frequency | 350 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LMZ13610 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Load Regulation | 1 mV / A |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.198933 oz |
For more information, please refer to datasheet
Documents
| LMZ13610TZE/NOPB Datasheet |
More Information
The LMZ13610 SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 10-A load. The LMZ13610 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
