Description

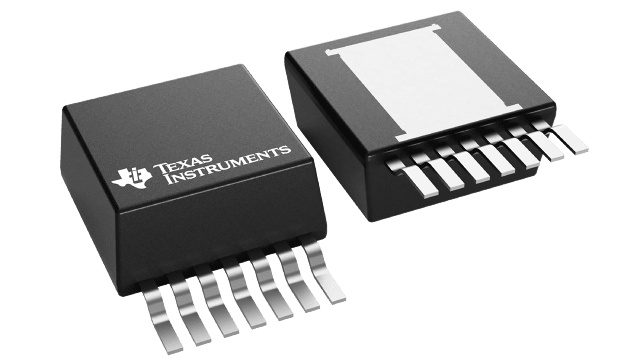

LMZ14203EXTTZ/NOPB Texas Instruments - Yeehing Electronics
3A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 28.496 |
100 — 249 | 25.33 |
250 — 999 | 20.823 |
1,000 + | 14.90 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-PMOD-7 |
Output Voltage | 800 mV to 6 V |
Output Current | 3 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 42 V |
Input Voltage MIN | 6 V |
Switching Frequency | 1 MHz |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Series | LMZ14203EXT |
Packaging | Reel |
Operating Temperature Range | - 55 C to + 125 C |
Type | Voltage Converter |
Brand | Texas Instruments |
Load Regulation | 1.5 mV / A |
Moisture Sensitive | Yes |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Tradename | SIMPLE SWITCHER |
Unit Weight | 0.016951 oz |
For more information, please refer to datasheet
Documents
LMZ14203EXTTZ/NOPB Datasheet |
More Information
The LMZ14203EXT SIMPLE SWITCHER,sup>® power module is an easy-to-use step-down DC-DC solution capable of driving up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14203EXT is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
