Texas Instruments
LMZ14203TZE-ADJ/NOPB
LMZ14203TZE-ADJ/NOPB
Regular price
$6.57 USD
Regular price
Sale price
$6.57 USD
Unit price
per
Couldn't load pickup availability
LMZ14203TZE-ADJ/NOPB Texas Instruments - Yeehing Electronics

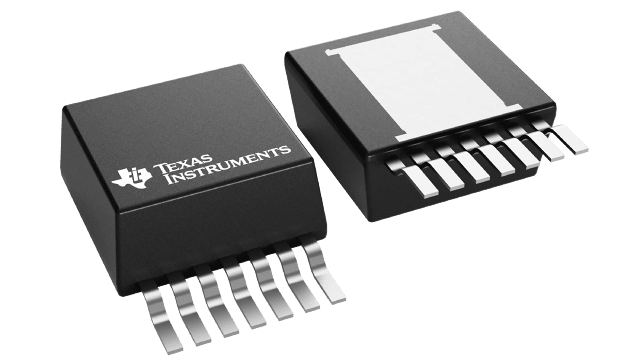

SIMPLE SWITCHER® 6V to 42V, 3A Power Module in Leaded Surface Mount TO Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.571 |
| 100 — 249 | 13.601 |
| 250 — 999 | 10.487 |
| 1,000 + | 6.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-PMOD-7 |
| Output Voltage | 800 mV to 6 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 42 V |
| Input Voltage MIN | 6 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMZ14203 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 45 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 6 V |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.016951 oz |
For more information, please refer to datasheet
Documents
| LMZ14203TZE-ADJ/NOPB Datasheet |
More Information
The LMZ14203 SIMPLE SWITCHER power module is an easy-to-use step-down DC-DC solution that can drive up to 3-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14203 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
