LMZ20502SILT Texas Instruments - Yeehing Electronics

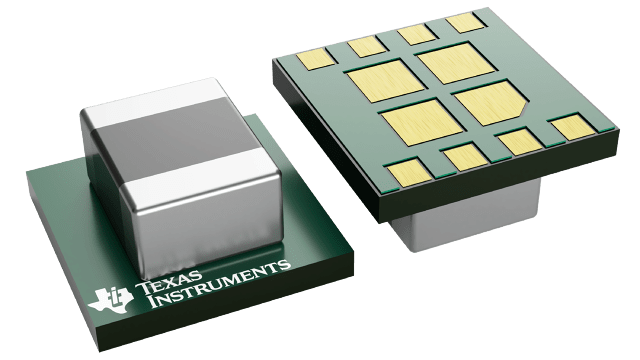

2.7V to 5.5V, 2A High Density Nano Module
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.121 |
| 100 — 249 | 3.611 |
| 250 — 999 | 2.532 |
| 1,000 + | 1.23 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LMZ20502SILT Datasheet |
More Information
The LMZ20502 nano module regulator is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 2 A of load from an input of up to 5.5 V, with exceptional efficiency and output accuracy in a very small solution size. The innovative package contains the regulator and inductor in a small 3.5 mm × 3.5 mm × 1.75 mm volume, thus saving board space and eliminating the time and expense of inductor selection. The LMZ20502 requires only five external components and has a pin-out designed for simple, optimum PCB layout. The device provides an easy-to-use complete design with a minimum number of external components and the TI WEBENCH® design tool. TIs WEBENCH tool includes features such as external component calculation, electrical simulation, and WebTherm™. For soldering information, refer to the following document: SNOA401.
