Texas Instruments
LMZ22010TZE/NOPB
LMZ22010TZE/NOPB
Regular price
$7.70 USD
Regular price
Sale price
$7.70 USD
Unit price
per
Couldn't load pickup availability

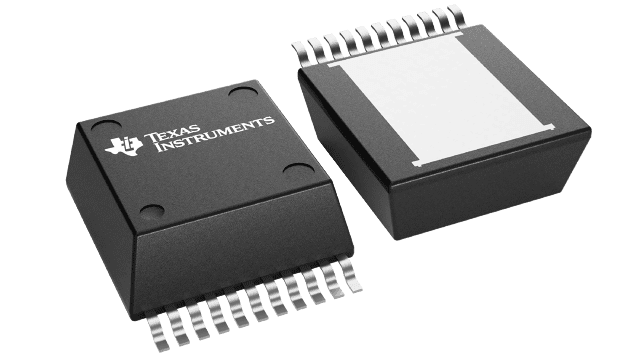

LMZ22010TZE/NOPB Texas Instruments - Yeehing Electronics
10A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage and Current Sharing
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.26 |
| 100 — 249 | 15.95 |
| 250 — 999 | 12.298 |
| 1,000 + | 7.70 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-PMOD-11 |
| Output Voltage | 800 mV to 6 V |
| Output Current | 10 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 20 V |
| Input Voltage MIN | 6 V |
| Switching Frequency | 350 kHz to 600 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LMZ22010 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | LMZ22010EVAL/NOPB |
| Load Regulation | 1 mV / A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 3 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.021043 oz |
For more information, please refer to datasheet
Documents
| LMZ22010TZE/NOPB Datasheet |
More Information
The LMZ22010 SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 10-A load. The LMZ22010 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
