Texas Instruments
LMZ30602RKGR
LMZ30602RKGR
Regular price
$1.54 USD
Regular price
Sale price
$1.54 USD
Unit price
per
Couldn't load pickup availability

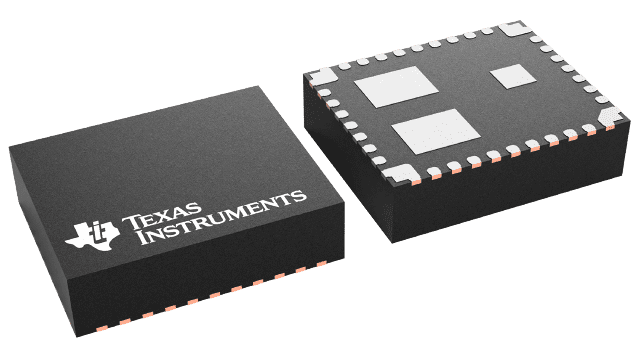

LMZ30602RKGR Texas Instruments - Yeehing Electronics
2.95V to 6V, 2A Step-Down Power Module in 9x11x2.8mm QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.048 |
| 100 — 249 | 3.3 |
| 250 — 999 | 2.594 |
| 1,000 + | 1.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | N |
| Mounting Style | SMD/SMT |
| Package / Case | B1QFN-39 |
| Output Voltage | 800 mV to 3.6 V |
| Output Current | 2 A |
| Input Voltage MAX | 6 V |
| Input Voltage MIN | 2.95 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LMZ30602 |
| Packaging | Reel |
| Input Voltage | 2.95 V to 6 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Development Kit | LMZ30602EVM-002 |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.030009 oz |
For more information, please refer to datasheet
Documents
| LMZ30602RKGR Datasheet |
More Information
The LMZ30602 power module is an easy-to-use integrated power solution that combines a 2-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process.
