Texas Instruments
LMZ30604RKGT
LMZ30604RKGT
Regular price
$2.40 USD
Regular price
Sale price
$2.40 USD
Unit price
per
Couldn't load pickup availability

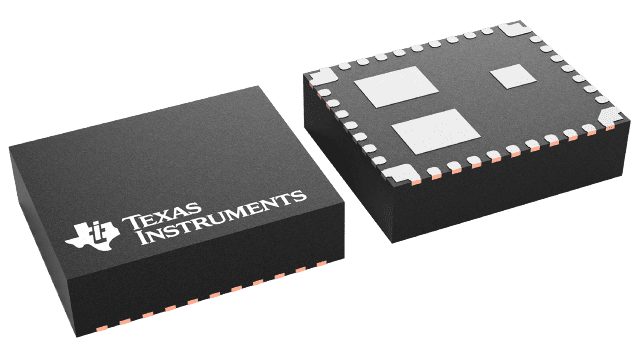

LMZ30604RKGT Texas Instruments - Yeehing Electronics
2.95V to 6V, 4A Step-Down Power Module in 9x11x2.8mm QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.403 |
| 100 — 249 | 5.22 |
| 250 — 999 | 4.103 |
| 1,000 + | 2.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | B1QFN-39 |
| Output Voltage | 3.6 V |
| Output Current | 4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6 V |
| Input Voltage MIN | 2.95 V |
| Switching Frequency | 2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | LMZ30604 |
| Packaging | Reel |
| Input Voltage | 6 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Switching Regulators |
| Type | Switching Regulator |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LMZ30604EVM-001 |
| Load Regulation | 0.1 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.95 V |
| Tradename | SIMPLE SWITCHER |
| Unit Weight | 0.030009 oz |
For more information, please refer to datasheet
Documents
| LMZ30604RKGT Datasheet |
More Information
The LMZ30604 power module is an easy-to-use integrated power solution that combines a 4-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution requires as few as 3 external components and eliminates the loop compensation and magnetics part selection process.
