Texas Instruments
LMZ31503RUQR
LMZ31503RUQR
Regular price
$2.89 USD
Regular price
Sale price
$2.89 USD
Unit price
per
Couldn't load pickup availability

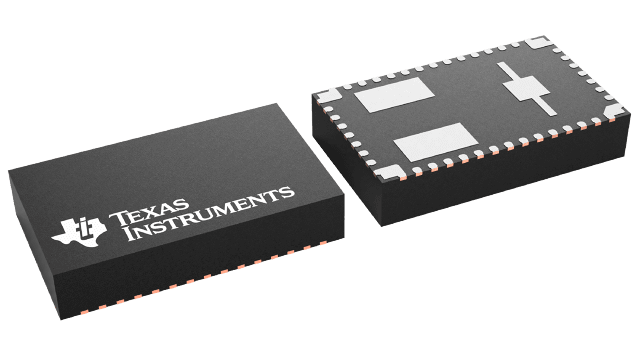

LMZ31503RUQR Texas Instruments - Yeehing Electronics
4.5V to 15V, 3A Step-Down Power Module in 9x15x2.8mm QFN Package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.59 |
| 100 — 249 | 6.188 |
| 250 — 999 | 4.863 |
| 1,000 + | 2.89 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Non-Isolated DC/DC Converters |
| RoHS | N |
| Product | Non-Isolated / POL |
| Number of Outputs | 1 Output |
| Input Voltage | 4.5 V to 14.5 V |
| Mounting Style | SMD/SMT |
| Length | 15 mm |
| Width | 9 mm |
| Height | 2.9 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Packaging | Reel |
| Series | LMZ31503 |
| Brand | Texas Instruments |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | Non-Isolated DC-DC Converters |
| Factory Pack Quantity | 500 |
| Subcategory | DC-DC Converter |
| Tradename | SIMPLE SWITCHER |
For more information, please refer to datasheet
Documents
| LMZ31503RUQR Datasheet |
More Information
The LMZ31503 power module is an easy-to-use integrated power solution that combines a 3-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as 3 external components and eliminates the loop compensation and magnetics design process.
